Epoxy Grout

Epoxy grout often flies under the radar in the grand scheme of engineering projects. But it is a crucial component that ensures the longevity and stability of many critical structures. What makes the epoxy grout chemistry a superior choice for a variety of applications?

Epoxy Grout Chemistry



Epoxy grouts are formulated from a variety of resins and hardeners, typically consisting of three components: resin, curing agent, and aggregate system. When these are mixed, a chemical reaction occurs that transforms the liquid mixture into a hard, durable material. This reaction is known as polymerisation.

It involves the epoxy molecules reacting repeatedly, forming a strong, interlinked structure. This reaction gives epoxy grout its remarkable properties:

1. High Bond Strength: The polymerisation process creates a network of strong chemical bonds, giving epoxy grout superior adhesion to concrete, steel, and other materials. This ensures that the grout remains firmly in place, even under significant stress and vibration.
2. Chemical Resistance: The molecular structure of cured epoxy grout is highly resistant to a wide range of chemicals, including acids, alkalis, and solvents. This makes it an ideal choice for industrial environments where exposure to harsh substances is common.
3. Low Shrinkage: Unlike cement-based grouts that can shrink as they cure, epoxy grout undergoes minimal shrinkage. This stability ensures that the grout maintains its volume and integrity over time, providing consistent support to the structures it reinforces.

Engineering Principles at Work



The remarkable properties of the epoxy grout chemistry result in several engineering advantages that make it an excellent choice for various applications:

Load Distribution: In heavy machinery installations, epoxy grout effectively distributes loads across the foundation. This reduces stress concentrations and minimises the risk of structural failure. In fact studies have shown that epoxy grout makes sand much stronger, whether the pressure on it is steady or changing. This means it can keep structures stable and safe, even under different kinds of pressure.

The high compressive strength of epoxy grout ensures that it can withstand the immense pressures exerted by heavy equipment. According to another study, epoxy grouts have been shown to increase the 28- and 90-day compressive strength of cement grouts by up to 21% and 84%, respectively, enhancing their ability to distribute loads and resist mechanical stresses

Vibration Dampening: Epoxy grout’s ability to absorb and dampen vibrations makes it invaluable in environments with high levels of mechanical activity. By reducing the transmission of vibrations, epoxy grout helps protect both machinery and structural components, prolonging their lifespan and maintaining operational efficiency.

In fact, it has been shown to significantly reduce vibrations in large pipeline compressors, thereby minimising downtime and enhancing equipment performance.

Precision and Alignment: For applications requiring precise alignment, such as machine tool foundations, epoxy grout provides the necessary stability. Its low shrinkage and high bond strength ensure that equipment remains correctly aligned, which is crucial for maintaining accuracy and performance.

Non-shrink epoxy grout formulations further enhance performance by minimising shrinkage and maintaining a strong chemical bond.

Durability in Extreme Conditions: Epoxy grout’s resistance to chemicals, moisture, and temperature fluctuations makes it suitable for use in extreme conditions. Whether in offshore platforms, chemical plants, or power stations.

Beyond the Basics



It’s clear epoxy grout doesn’t have the role of a mere filler. The advanced epoxy grout chemistry, which gives it superior engineering properties makes it as an essential material in modern construction and industrial applications.

By using the special properties that epoxy grout has, engineers can create structures that are extremely robust and durable, effectively meeting the rigorous demands of today’s environments.

At Alphatec Engineering as we continue to explore the materials and technologies that drive progress in our field. To find out more about how epoxy grout is impacting the construction industry check out this article here.



When we think of railway infrastructure, we often imagine the tracks, trains, and stations that make up our public transport systems. However, beneath the visible surface, a number of components work together to ensure the safety, reliability, and efficiency of these systems. One of these key components is epoxy grout and it plays an essential role in various aspects of railway infrastructure.

Key Applications of Epoxy Grout in Railway Infrastructure

Baseplate Grouting

Purpose: One of the main uses of epoxy grout in railway infrastructure is securing rail base plates to concrete or steel structures. Baseplates effectively distribute the loads from the rails to the underlying foundation.

Benefits: Epoxy grout creates a strong bond between the baseplate and the foundation. This  reduces the risk of rail movement and provides stability. It also helps distribute loads more evenly, minimising wear and tear on the infrastructure.

Rail Support and Anchoring

Purpose: Epoxy grout is used to anchor rails to concrete slabs or other foundations, ensuring they remain securely in place.

Benefits: The compressive strength and excellent adhesion properties of epoxy grout make it ideal for this application, as it provides long-lasting support and reduces the risk of rail misalignment. One study found that, incorporating epoxy resin and other substances, early-age compressive strength increases by 15.3% compared to traditional products. It also exhibits strong environmental resistance, with only a 6.7% strength reduction after sulfuric acid exposure and a 1.5% reduction after freeze-thaw cycle.

Crack and Joint Repair

Purpose: Over time, concrete structures supporting railways can develop cracks and joints due to environmental stress and heavy loads. Epoxy grout is used to fill these cracks and joints, preventing further deterioration.

Benefits: By sealing cracks and joints, epoxy grout prevents water ingress and other damaging elements from entering the concrete. As a result this  prolongs the life of the infrastructure and maintains its integrity.

Vibration and Noise Reduction

Purpose: Trains generate significant vibration and noise, which can be problematic for both the infrastructure and surrounding communities. According to Science Direct epoxy has good sound-proofing properties because of its air resistance and dampening properties which inhibit sound transmission within the structure.

Benefits: Its dampening properties help reduce vibration and noise levels, contributing to a smoother and quieter ride. It also reduces stress on the structural components, extending their lifespan.

Structural Reinforcement

Purpose: In cases where concrete structures have weakened or damaged, epoxy grout can be used for structural reinforcement.

Benefits: It provides additional strength and durability and helps to restore the integrity of the infrastructure. This improvement helps it handle the demands of train operations.

Levelling and Alignment

Purpose: Accurate alignment and levelling of rail tracks are necessary for safe and efficient train operations. Epoxy grout is used to create a level surface for precise track alignment.

Benefits: The material’s stability and ease of application make it ideal for ensuring tracks are perfectly aligned, which is especially important for high-speed rail systems.

Advantages of Epoxy Grout in Railway Infrastructure



The use of epoxy grout in railway infrastructure offers several significant advantages:

• High Strength: Epoxy grout has excellent load-bearing capacity. This means the infrastructure remains stable and secure under constant stress.
• Durability: The material is highly resistant to wear and tear, chemicals, and environmental conditions. As a result, infrastructure requires less frequent maintenance and repairs.
• Adhesion: Epoxy grout bonds well with a variety of materials, including concrete and steel. This is essential for applications like baseplate grouting and rail anchoring.
• Low Shrinkage: Unlike some other materials, epoxy grout exhibits minimal shrinkage over time, reducing the risk deformation.
• Fast Curing: Epoxy grout cures quickly, allowing for faster installation and reduced downtime during maintenance operations. This is perfect for minimal disruption to train services.

Typical Scenarios Involving Epoxy Grout



• New Track Construction: During the construction of new rail lines, epoxy grout is used to secure baseplates and ensure the alignment and stability of the tracks.
• Maintenance and Repairs: Regular maintenance of railway systems often involves the use of epoxy grout to repair cracks, fill gaps, and reinforce structures that have deteriorated over time. This maintenance helps extend the life of the infrastructure and ensure safe operations.
• Upgrades and Modernization: When upgrading existing railway infrastructure, epoxy grout plays a crucial role in improving the load-bearing capacity and durability of foundations and support structures. This can help to meet the demands of modern train operations.

Conclusion



Epoxy grout is essential in train infrastructure due to its unparalleled strength, durability, and versatility. Its applications in baseplate grouting, rail support, crack repair, vibration and noise reduction, structural reinforcement, and alignment are crucial for maintaining railway safety and efficiency. Alphatec Engineering specialises in epoxy grout solutions, offering expertise and tailored services to enhance and sustain the integrity of railway systems, ensuring they remain reliable and effective for years to come.

Contact us today for all your epoxy grout needs!

Epoxy grout and bridges, is there really that need? Bridge safety is a paramount concern for civil engineers, governments, and communities worldwide.  They are crucial infrastructures. However, their integrity can be compromised by a variety of factors leading to structural failures. These pose serious risks to public safety and economic stability.

Common causes of bridge failures include:

• Material fatigue
• Corrosion
• Overloading
• Poor maintenance
• Environmental challenges such as earthquakes and flood

Each of these factors can severely impact a bridge’s functionality and lifespan.

In response to these challenges, the construction and maintenance of bridges have evolved to incorporate advanced materials and technologies designed to extend their life and enhance their resilience. Among these materials, epoxy grout stands out as a critical component in modern bridge engineering.

Epoxy grout is known for its high tensile strength, excellent bonding properties, and resistance to chemicals and weather. It plays a vital role in both the construction of new bridges and the repair of existing ones. Its ability to penetrate deeply into micro-cracks and crevices allows for effective reinforcement of bridge components, thus significantly reducing the risk of failures.

In maintaining bridge safety, innovative solutions like epoxy grout are essential.

Understanding Bridge Failures

Bridge failures, while rare, serve as crucial lessons for the civil engineering community. They include the importance of robust construction practices, diligent maintenance, and continuous innovation in materials like epoxy grout. Epoxy grout and bridges go hand in hand. Understanding the types of bridge failures and analysing real-world incidents can significantly aid in designing safer bridges in the future.

Types of Bridge Failures

Bridge failures can generally be categorised into three main types:

1. Structural Failures: These occur when a component of the bridge fails to perform its intended function due to design flaws, construction errors, or excessive loads. Structural integrity can be compromised, leading to partial or complete collapse.
2. Material Fatigue: Over time, the materials used in bridge construction can weaken due to repeated stress or load, leading to cracks and eventual failure. Fatigue is particularly common in metal components but can also affect concrete.
3. Environmental Damage: Bridges are exposed to various environmental factors, including weather conditions, chemicals, and physical wear from traffic. Extreme weather like floods and earthquakes can precipitate sudden catastrophic failures.

Examples of Notable Bridge Failures

To illustrate the severe consequences of such failures and how advanced solutions like epoxy grout could potentially mitigate these risks, here are a few real-world examples:

• I-35W Mississippi River Bridge (2007): This bridge in Minneapolis, USA, suddenly collapsed due to a design flaw combined with additional loading. The failure led to 13 deaths and highlighted the need for rigorous inspection and maintenance regimes.





Tacoma Narrows Bridge (1940): Known as “Galloping Gertie,” this suspension bridge in Washington, USA, failed spectacularly due to aeroelastic flutter induced by wind. The collapse has been studied extensively to understand aerodynamics and bridge design improvements.

Genoa Polcevera Viaduct (Morandi Bridge) (2018): This bridge in Italy collapsed due to a combination of design flaws and lack of maintenance on the concrete stays and their encasing, leading to 43 deaths. It underscored the importance of maintaining ageing infrastructure.

Epoxy Grout and Bridges: Prevent Failures

Epoxy grout has become an integral part of modern bridge construction and maintenance due to its superior properties and performance. Its application in new bridge projects and existing structures provides a robust defence against common causes of bridge failures, ensuring longevity and structural integrity.

Application of Epoxy Grout in New Bridge Construction

In new bridge construction, epoxy grout is extensively used to fill voids, bond tendons, and secure anchorages. This usage not only ensures that all parts of the bridge fit perfectly but also enhances the overall structural integrity from the outset. By embedding epoxy grout into critical junctions and stress points, engineers can preemptively reinforce these areas against potential failure modes.

Preventive Measures Epoxy Grout Offers Against Water Infiltration, Corrosion, and Cracking

Epoxy grout is impermeable to water, which makes it an excellent choice for bridges exposed to harsh environmental conditions. Its application prevents water infiltration, which is a common cause of corrosion and freeze-thaw damage in bridges.

Additionally, epoxy grout resists chemical attacks and reduces the likelihood of corrosion-induced damage, particularly in bridges that encounter sea spray. Its superior adhesion properties also help to prevent the formation of cracks, further preserving the structural elements of the bridge.

Enhancing Load-Bearing Capabilities of Bridges

By integrating epoxy grout into the construction process, bridges can achieve enhanced load-bearing capabilities. The grout improves the distribution of loads across the bridge structure, reducing stress on individual components and extending the bridge’s service life. This is particularly beneficial in areas with heavy traffic or increased load demands.

Epoxy Grout and Bridges: Repair Damage

Epoxy grout is not only preventative but also remedial, offering significant benefits in the repair of damaged bridges. Its application can restore structural integrity and extend the lifespan of aging bridge infrastructure.

Step-by-Step Guide on Using Epoxy Grout for Repairs

1. Assessment: Evaluate the extent of the damage and determine the specific areas that need repair.
2. Preparation: Remove any loose or deteriorated material and prepare the surface to ensure optimal adhesion of the epoxy grout.
3. Mixing: Prepare the epoxy grout according to manufacturer specifications to achieve the correct consistency and properties.
4. Application: Apply the epoxy grout to the damaged areas, using techniques such as pouring, pumping, or injecting, depending on the location and extent of the damage.

Specific Case Where Epoxy Grout Has Restored Damaged Structures

One notable example is the repair of the Hammersmith Flyover in London, where epoxy grout was used extensively to address widespread cracking and structural weaknesses. The application of epoxy grout helped to stabilise the structure and significantly extend its operational life, demonstrating its effectiveness in real-world applications.

Long-Term Benefits of Using Epoxy Grout for Repairs

The use of epoxy grout in bridge repairs offers long-term benefits including enhanced durability, resistance to environmental impacts, and reduced maintenance requirements. By restoring and strengthening damaged bridges, epoxy grout helps to secure these vital structures against future failures, ensuring safety and functionality for years to come.

Conclusion

Epoxy grout is indispensable for enhancing the safety, durability, and performance of bridge structures. Its role in preventing and addressing bridge failures underscores its value in modern engineering. For those seeking expert application and advice on epoxy grout for bridges, consider reaching out to Alphatec Engineering. Connect with us today to ensure your bridge infrastructure benefits from the best in engineering solutions.

What is Epoxy Grout?

Epoxy grout is a high-performance construction material renowned for its exceptional strength, durability, and chemical resistance. Unlike traditional cementitious grouts, epoxy grout is a two-part adhesive consisting of epoxy resin and hardener. When combined, these components create a robust and impermeable substance that adheres tightly to surfaces.

Epoxy Resin

At the heart of epoxy grout lies the epoxy resin, a robust compound derived from a meticulous combination of epoxide monomers. These monomers, possessing reactive oxygen atoms, undergo a transformative process when exposed to the hardener. This reaction, often referred to as curing, initiates the creation of a three-dimensional polymer network within the epoxy resin.

Hardener

The hardener, a critical component in the epoxy grout recipe, typically comprises amines or amides. This carefully selected blend of chemicals acts as a catalyst, instigating the curing process by interacting with the epoxide monomers in the epoxy resin. As this chemical marriage unfolds, a cross-linked molecular structure forms, leading to the development of a dense and non-porous material.

The Chemical Symphony

The culmination of the epoxy resin and hardener interaction produces a chemical reaction, yielding a material that is dense and non-porous. This characteristic is fundamental to the effectiveness of epoxy grout in heavy machinery foundations.

The dense structure ensures optimal load-bearing capacity, distributing weight uniformly across the foundation. Moreover, the non-porous nature guards against moisture ingress, preventing the degradation that may compromise the stability of the machinery over time.

Adhesion Capabilities

One of the standout features of epoxy grout is its exceptional adhesion capabilities. The cured material forms a tenacious bond with various surfaces, creating a seamless connection between the grout and the machinery foundation. This robust adhesion not only enhances the structural integrity of the foundation but also acts as a barrier, shielding against potential issues such as vibrations and structural shifts.

Applications in Industrial Foundations

Machinery Bases

Epoxy grout is widely employed in creating stable foundations for heavy machinery. Its ability to fill voids and adhere firmly to surfaces ensures that machinery bases receive optimal support, reducing vibrations and enhancing overall stability during operation.

Precision Alignment

One of the standout features of epoxy grout is its role in precision alignment. Machinery components, such as motors and pumps, require meticulous alignment for efficient operation. Epoxy grout facilitates this by providing a level and stable foundation, ensuring that machinery operates within specified tolerances.

Chemical and Abrasion Resistance

In industrial settings where exposure to chemicals and abrasive materials is common, epoxy grout excels. Its resistance to corrosive substances and its ability to withstand abrasion make it a preferred choice for foundations in harsh environments, ensuring longevity and reliability.

Installation Process

Surface Preparation

A crucial step in the epoxy grouting process is surface preparation. Surfaces must be clean, dry, and free of contaminants to ensure proper adhesion. This involves thorough cleaning and often includes methods such as shot blasting or diamond grinding.

Mixing and Application

The epoxy grout components are meticulously measured and mixed according to manufacturer specifications. Once mixed, the grout is applied to the prepared surface, filling voids and ensuring complete coverage. Careful application is vital for achieving the desired structural integrity.

Curing and Inspection

After application, epoxy grout undergoes a curing process during which it transforms into a solid and resilient material. This curing time varies depending on environmental conditions and the specific epoxy formulation. Post-curing, a detailed inspection ensures that the grout has bonded effectively and meets quality standards.

Advantages of Epoxy Grout in Machinery Foundations

There are a whole host of advantages to using epoxy grout in foundations, below are just a few!

Enhanced Load Distribution

Epoxy grout’s high compressive strength allows for superior load distribution, preventing localised stress points and ensuring that heavy machinery is evenly supported across its foundation.

Vibration Dampening

The dense nature of epoxy grout contributes to effective vibration dampening. By minimising vibrations, the grout not only enhances machinery performance but also mitigates wear and tear on equipment.

Long-Term Durability

Epoxy grout’s resistance to chemicals, moisture, and abrasion translates into long-term durability. This durability, coupled with minimal maintenance requirements, makes it a cost-effective choice for industrial foundations.

Considerations and Best Practices

Professional Installation

While epoxy grout offers remarkable benefits, its effectiveness hinges on proper installation. Employing experienced professionals ensures that the grouting process is executed meticulously, guaranteeing optimal performance.

Environmental Factors

Consideration of environmental factors, such as temperature and humidity, is crucial during the epoxy grouting process. These variables can impact curing times and overall performance, emphasising the importance of adherence to manufacturer guidelines.

For all your foundation installation, repair and epoxy grouting needs contact Alphatec Engineering today!!



When it comes to heavy machinery, the stability and integrity of its foundation are paramount. The foundation serves as the bedrock upon which the entire machinery structure rests, providing the necessary support for optimal performance. To ensure the reliability and safety of heavy machinery, conducting thorough foundation inspections is not just a good practice but an essential one.

Critical components such as load distribution, alignment, and vibration control are contingent on a solid foundation.

Identifying and addressing foundation issues early on can prevent catastrophic failures, costly repairs, and unplanned downtime. Issues such as cracks, settlement, or uneven surfaces can compromise the stability of the machinery, leading to operational inefficiencies.

Beyond immediate concerns, regular foundation inspections contribute to the longevity of heavy machinery. By proactively identifying and rectifying potential problems, operators and maintenance personnel can extend the lifespan of the equipment, reducing the need for major overhauls or replacements.

In this guide, we will delve into the comprehensive process of conducting foundation inspections for heavy machinery.

Common Foundation Issues in Heavy Machinery

The foundation of heavy machinery is subjected to tremendous stress and pressure, making it susceptible to various issues over time. Identifying these common foundation problems is crucial for maintaining the structural integrity and functionality of heavy machinery.

Identifying Signs of Foundation Problems

• Cracks and Fractures:

• • • Visible cracks on the surface of the foundation or along structural components are often indicators of underlying issues. The size, pattern, and location of cracks can provide valuable insights into the nature and severity of the problem.

• Uneven Settling:

• • • Differential settling, where one part of the foundation sinks more than another, can lead to misalignments and operational inefficiencies. This may manifest as uneven surfaces or tilting of the machinery.

• Vibrations and Noise:

• • • Unusual vibrations or excessive noise during machinery operation may signal foundation problems. Vibrations can accelerate wear on components, and identifying their source is crucial for preventive maintenance.

• Water Damage:

• • • Foundations exposed to water or high moisture levels may experience erosion, weakening the structural integrity. Signs of water damage include staining, efflorescence, or soft spots in the foundation.

• Soil Erosion:

• • • Changes in soil conditions around the foundation, such as erosion or soil shifting, can compromise the stability of the machinery. Inspecting the soil in and around the foundation is essential for early problem detection.

• Misalignment of Machinery Components:

• • Foundation issues can lead to misalignments in machinery components. This may result in increased friction, wear, and potential damage to crucial parts of the equipment.

Impact of Neglected Foundation Issues on Machinery

• Reduced Operational Efficiency:

• • • Neglected foundation problems can lead to misalignments and increased friction, reducing the overall efficiency of the machinery. This inefficiency may result in higher energy consumption and decreased productivity.

• Accelerated Wear and Tear:

• • • Unaddressed foundation issues contribute to accelerated wear and tear on machinery components. This can lead to more frequent breakdowns, increased maintenance costs, and shorter equipment lifespan.

• Safety Risks:

• • • Foundation problems pose significant safety risks to both machinery operators and surrounding personnel. Sudden failures or collapses can result in accidents, injuries, or even fatalities.

• Downtime and Production Loss:

• • • The failure to address foundation issues promptly can result in unplanned downtime for repairs. This downtime can disrupt production schedules, lead to financial losses, and negatively impact a company’s bottom line.

• Long-Term Structural Damage:

• • Foundation issues, if left unattended, can cause long-term structural damage to the machinery. This may necessitate extensive repairs or, in extreme cases, the replacement of major components or the entire equipment.

Step-by-Step Guide to Foundation Inspections

Foundation inspections for heavy machinery require a systematic approach to ensure a comprehensive assessment of both surface and structural conditions. This step-by-step guide will walk you through the key stages of a thorough foundation inspection.

Visual Inspection: Surface Checks

The first phase of a foundation inspection involves a detailed visual examination of the surface. This step is crucial for identifying obvious signs of wear, damage, or misalignment that may be visible to the naked eye.

Surface Cleanliness:

• Begin by clearing away any debris or obstructions from the foundation surface. This allows for a clearer view and facilitates a more accurate assessment.

Crack Identification:

• Carefully inspect the entire surface for cracks, fractures, or fissures. Pay close attention to the size, length, and patterns of the cracks, as these details can provide insights into the nature of the foundation issue.

Alignment Assessment:

• Check for any visible misalignments or uneven surfaces. Misalignments can indicate underlying foundation problems that may affect the overall stability of the machinery.

Surface Anomalies:

• Look for any unusual features on the surface, such as bulges, depressions, or discolorations. These anomalies may be indicative of subsurface issues that require further investigation.

Documentation:

• Document your findings through photographs and detailed notes. Clear documentation is essential for tracking changes over time and for sharing information with relevant stakeholders.

Structural Assessment: Below the Surface

Once the surface inspection is complete, the focus shifts to a more in-depth evaluation of the structural components beneath the surface. This involves using specialized tools and techniques to assess the foundation’s integrity.

Ground Penetrating Radar (GPR):

• Utilize GPR technology to scan below the surface and identify anomalies or variations in material density. GPR is effective in detecting subsurface issues, such as voids, water infiltration, or changes in soil composition.

Non-Destructive Testing (NDT):

• Employ NDT techniques, such as ultrasonic testing or magnetic particle inspection, to assess the internal condition of foundation materials. These methods help identify hidden flaws or weaknesses without causing damage to the structure.

Soil Testing:

• Conduct soil tests in and around the foundation to assess its load-bearing capacity. Changes in soil composition or stability can directly impact the foundation’s ability to support heavy machinery.

Foundation Material Inspection:

• Inspect the materials used in the foundation construction. Evaluate the condition of concrete, steel, or other materials for signs of degradation, corrosion, or other structural deficiencies.

Professional Structural Evaluation:

• If necessary, involve structural engineers to conduct a detailed evaluation of the foundation. Their expertise can provide deeper insights into the structural integrity and stability of the foundation.

This comprehensive approach ensures that both surface and structural aspects are considered, facilitating early detection and effective resolution of foundation issues in heavy machinery.

Key Components to Focus on During Inspections

Assessing Pads and Footings

Pads and footings play a pivotal role in load distribution, so their condition is paramount. Ensure they are level and properly aligned to prevent uneven weight distribution. Examine for wear and tear, replacing any worn components promptly. Assess the interaction with underlying soil, as settling or erosion can impact their effectiveness.

Inspecting Anchor Bolts and Base Plates

Anchor bolts and base plates provide critical connections between machinery and its foundation. Regularly check the tightness of bolts to prevent shifting, inspect for corrosion or rust, and ensure proper alignment with the machinery. Misalignment can lead to stress concentrations and premature wear.

Preventive Measures and Routine Checks

Implement preventive measures such as regular cleaning, adequate drainage, and routine checks. Establish a schedule for inspections, including daily, weekly, and monthly checks, and involve machinery operators in basic visual inspections during routine operations. Training operators to recognize unusual vibrations and establishing clear reporting procedures contribute to early issue detection. Finally, collaboration with structural engineers for periodic evaluations and consulting professionals for in-depth assessments ensures a comprehensive approach to foundation maintenance.

Collaboration with Structural Engineers

Ensuring the longevity and stability of heavy machinery foundations demands expertise beyond routine inspections. Collaborating with structural engineers is pivotal for a comprehensive assessment. Periodic structural evaluations conducted by professionals reveal nuanced issues that might escape routine checks. For a thorough understanding and interpretation of test results, the insights of structural engineers are invaluable.

Consulting Professionals for In-Depth Assessments

When facing complex foundation challenges, seeking guidance from professionals becomes paramount. Alphatec Engineering specialises in in-depth assessments, employing advanced techniques. Our expertise provides nuanced insights, guiding the most effective and efficient solutions tailored to your machinery’s unique foundation requirements.

Addressing Long-Term Foundation Stability

Alphatec Engineering goes beyond assessments; they offer strategic recommendations for addressing identified issues and ensuring long-term foundation stability. By leveraging our expertise, you gain a proactive partner in maintaining the robustness of your heavy machinery foundations. Elevate your approach to foundation maintenance—partner with Alphatec Engineering for lasting stability.

Experience the Alphatec Advantage: Visit Alphatec Engineering

When it comes to constructing robust and durable structures, the foundation is undeniably the cornerstone of success. In the world of heavy machinery, industrial plants, and critical infrastructure, the reliance on sturdy foundations is paramount.

Understanding Epoxy Grout

Epoxy grout, a high-strength bonding material, has become a game-changer in the construction industry, particularly in the domain of foundation repair. What sets epoxy grout apart from conventional alternatives is its unique composition. It is a two-part mixture, consisting of resin and hardener, that undergoes a chemical reaction to form an incredibly durable and resilient substance.

The chemical reaction involved not only imparts superior strength but also exceptional adhesion, making epoxy grout highly effective in fortifying weakened foundations.

The Epoxy Grout Advantage

In the world of foundation repair, one of the primary challenges is ensuring that the repaired structure can withstand the immense loads imposed by heavy machinery and industrial processes. Epoxy grout rises to this challenge with unmatched strength and durability. Its high compressive strength makes it ideal for supporting heavy loads, preventing structural failures, and extending the lifespan of foundations.

Foundations often face issues such as cracking, settling, or uneven settlement over time. Epoxy grout addresses these problems by providing a uniform and stable base. The material fills voids and gaps, creating a seamless bond that reinforces the foundation and distributes loads evenly. As a result, structures supported by epoxy grout enjoy enhanced stability, reducing the risk of future repairs and maintenance.

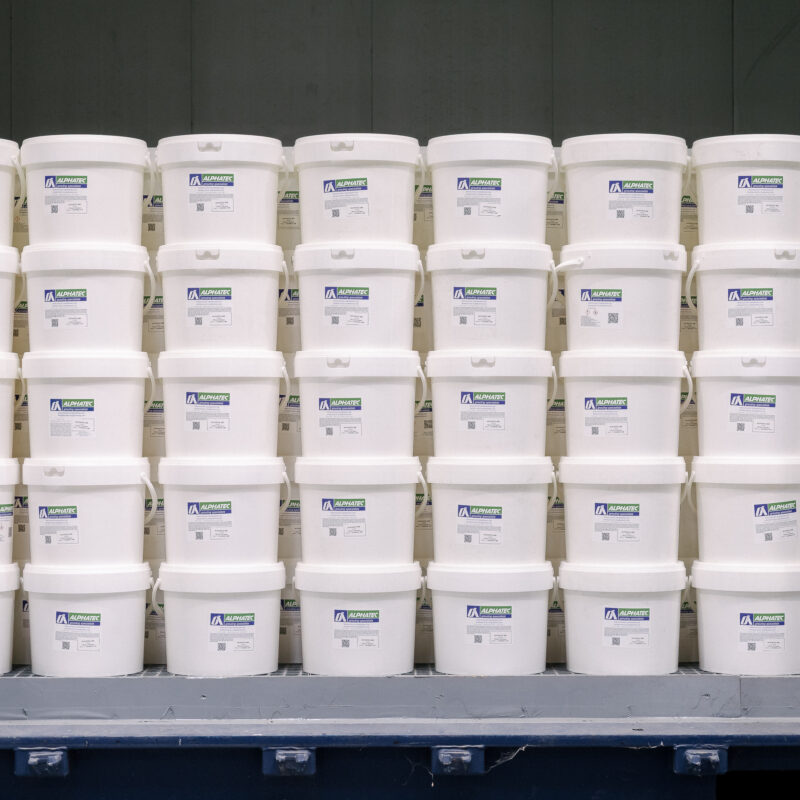

Alphatec Engineering has multiple epoxy grout products to meet your needs. Our star product is ALPHATEC® 800. It is a high performance, aggregate-filled epoxy grout with superior mechanical and chemical properties. This grout material has been specifically formulated to support heavy machinery on concrete foundations, and when used correctly, will ensure the transfer of static and dynamic loads into the inertia block

The Precision of Epoxy Grout in Foundation Repair

Precision is paramount in foundation repair, especially when dealing with intricate machinery alignments and critical structural components. Epoxy grout is very effective in this aspect, offering a level of precision that is unparalleled in the construction industry. Its flowable consistency allows it to reach even the tightest spaces, ensuring a complete and thorough bond between the foundation and the grout.

Whether it’s aligning heavy machinery or addressing the intricate details of a foundation’s geometry, epoxy grout provides a solution that goes beyond the capabilities of traditional repair materials. This precision not only enhances the structural integrity of the repaired foundation but also plays a crucial role in preventing future issues that may arise from misalignments or uneven weight distribution.

Epoxy Grout: A Resilient Shield Against Environmental Factors

Foundations are exposed to a myriad of environmental factors, from temperature variations to chemical exposure. Epoxy grout, with its exceptional resistance to environmental stressors, acts as a resilient shield for foundations, ensuring longevity and reliability even in challenging conditions.

Resisting the Elements

Epoxy grout’s resistance to chemicals and environmental elements makes it an ideal choice for foundations in industrial settings. It withstands the corrosive effects of chemicals commonly found in manufacturing plants, protecting the foundation from degradation over time. Additionally, its resistance to temperature fluctuations prevents the expansion and contraction that can lead to cracks and damage in conventional grouting materials.

Water and Chemical Challenges

In regions susceptible to heavy rainfall or flooding, water damage poses a significant threat to foundations. Epoxy grout serves as an effective waterproofing agent, creating a seal that protects the foundation from moisture infiltration. This proactive measure not only averts water-induced damage but also preserves the structural integrity of the foundation. Consequently, epoxy grout emerges as an optimal selection for projects situated in flood-prone or humid areas.

Longevity and Durability

Foundations treated with epoxy grout benefit from increased longevity and durability. The material’s ability to prevent cracking, settling, and uneven settlement contributes to the overall stability of the structure including earthquake zones. By addressing these common issues, epoxy grout extends the lifespan of foundations, reducing the need for frequent repairs and maintenance.

Epoxy Grout – The Foundation Repair Revolution

In the realm of foundation repair, epoxy grout stands tall as a revolutionary force. Its unparalleled strength, precision, and resilience make it a go-to choice for engineers and construction professionals looking to fortify structures against the tests of time and environmental challenges. From aligning heavy machinery with precision to creating a resilient shield against the elements, epoxy grout is undeniably the secret weapon in the arsenal of foundation repair.

As industries continue to evolve and demand stronger, more durable foundations, the role of epoxy grout becomes increasingly pivotal. It’s not just a material; it’s a solution that transforms the way we approach foundation repair, offering a level of performance and longevity that was once considered unattainable. In the journey to build power and resilience, epoxy grout emerges as a true champion, reinforcing the foundations of our world.

To see a case study in action check out our reciprocating compressor grouting success case here.

When it comes to repairing and restoring machinery foundations, the epoxy grout application is a critical step. The process involves meticulous planning, precise execution, excellent understanding of engineering and adherence to specific guidelines to ensure a successful outcome. So what is involved?

Surface Preparation for Epoxy Grout Application

Surface preparation is a critical and indispensable step when it comes to the application of epoxy grout. It serves as the foundation for achieving a successful and long-lasting installation. The process begins by thoroughly cleaning the surface of the machinery foundation, ensuring the removal of any dirt, debris, oil, or loose particles that may be present.

The significance of proper surface preparation cannot be overstated, as it directly impacts the adhesion and bonding of the epoxy grout to the foundation. Without adequate preparation, the grout may fail to adhere effectively, leading to compromised performance and potential issues down the line.

To ensure optimal adhesion, it is essential to create a clean and contaminant-free surface. This allows the epoxy grout to penetrate and bond securely with the foundation, promoting stability and durability.

In cases where oil or grease stains are present, specialised degreasers or detergents may be necessary to ensure their complete removal. Additionally, stubborn or ingrained stains may require treatment with solvents or other suitable cleaning agents to achieve a pristine surface.

Once the cleaning process is complete, a thorough inspection is necessary to identify any remaining residues or contaminants. Addressing these issues promptly helps to avoid potential complications during the epoxy grout application.

Furthermore, it is crucial to allow the surface to dry completely before proceeding with the grout installation. Moisture or dampness can hinder the curing process of the grout and compromise its integrity. Various drying methods, such as air drying, heat lamps, or dehumidifiers, can be utilised to expedite the drying process.

Mixing the Epoxy Grout for Application

After surface preparation, the next step in the epoxy grout application process is mixing the grout itself. Following the manufacturer’s instructions is crucial during this stage. The recommended mixing ratio must be carefully followed to ensure the desired consistency of the grout. Achieving a consistent and homogenous mixture is essential for optimal performance.

Mechanical mixers are commonly used to blend the components thoroughly. This helps to disperse the materials evenly and prevent the formation of lumps or any unevenness in the grout. By using a mechanical mixer, the mixture can be properly combined, resulting in a smooth and workable epoxy grout ready for application.

Pouring and Levelling

After successfully mixing the epoxy grout according to the manufacturer’s instructions, the next step is pouring and levelling the grout onto the prepared machinery foundation surface. This process requires careful attention to ensure a proper and even application.

The mixed epoxy grout is poured onto the surface within the designated area, aligning with the repair requirements. It is essential to pour the grout evenly to achieve uniform coverage.

During this stage, precision is key. The grout should be distributed evenly to eliminate any gaps or unevenness. This helps to ensure the integrity and stability of the machinery foundation once the grout cures.

The levelling process involves working the grout with the tools to create a smooth and flat surface. It is important to pay attention to the thickness and consistency of the grout while levelling, as variations can impact the final results.

By pouring and levelling the epoxy grout with care and precision, a well-applied and visually pleasing surface can be achieved. This step sets the foundation for the grout to cure properly and provide the necessary support and stability for the machinery.

Finishing Techniques

Once the epoxy grout has been poured onto the prepared machinery foundation, the next step involves implementing a range of finishing techniques to achieve a smooth and even surface. These techniques play a significant role in ensuring the grout is properly levelled and any excess material is removed.

Straightedges, screeds, or floats are utilised to level the grout and remove any excess material. These tools help achieve the desired thickness and contour, ensuring proper alignment with the machinery base.

Curing and Protection

After the application of epoxy grout, the curing phase begins. It is crucial to adhere to the recommended curing time and conditions as specified by the manufacturer. This ensures that the grout achieves its optimal strength and durability.

During the curing period, it is important to protect the newly applied grout from potential threats. Excessive moisture should be avoided, as it can interfere with the curing process and compromise the integrity of the grout. Similarly, temperature fluctuations should be controlled, as extreme temperatures can negatively affect the curing process.

Physical disturbances should also be minimised during curing. Any movement or heavy loads on the grouted surface should be avoided to prevent cracks or dislodging of the grout.

To safeguard the curing grout, appropriate protective measures can be implemented. This may include using plastic sheets or temporary barriers to shield the area from moisture, controlling the temperature environment, and clearly marking the grouted area to prevent accidental damage.

By ensuring proper curing and protecting the freshly applied epoxy grout, its strength, durability, and overall performance can be maximised, leading to a reliable and long-lasting support system for the machinery.

Post Epoxy Grout Application Inspection and Testing

Once the epoxy grout has fully cured, it is essential to conduct a thorough post-application inspection and testing to verify the quality of the repair. This step helps ensure that the grout has adhered properly and meets the specified requirements.

The inspection process involves assessing the bond strength between the grout and the machinery foundation. This can be done through various testing methods.

Additionally, a visual inspection is conducted to identify any potential voids, cracks, or imperfections in the grout. This allows for timely identification and rectification of any issues that may compromise the long-term performance and stability of the repair.

If any deficiencies are found during the inspection, necessary adjustments or touch-ups can be made to address them. This ensures that the grout repair meets the desired standards and provides the required support and stability for the machinery.

Conclusion

Alphatec Engineering has demonstrated exceptional expertise in the installation and repair of machine foundations with epoxy grout. Through their meticulous surface preparation techniques, accurate mixing and epoxy grout application processes, and attention to finishing details, Alphatec Engineering ensures a high-quality and reliable outcome for their clients.

With Alphatec Engineering’s exceptional capabilities in epoxy grout installation and repair, clients can have confidence in the durability, reliability, and performance of their machine foundations.



In the world of heavy machinery and industrial equipment, the stability and integrity of foundations play a crucial role in ensuring safe and efficient operations.

Over time, foundations can experience wear, settlement, or damage that requires proper restoration and repair. One effective solution for addressing grout-related issues in machinery foundations is the use of epoxy grout.

What are the benefits of Epoxy Grout

1. Superior Strength and Load-Bearing Capacity

Epoxy grout offers exceptional strength and load-bearing capacity, making it an ideal choice for machinery foundation repair. Its high compressive strength ensures that the grout can withstand heavy loads and resist the compressive forces exerted by the machinery, providing long-lasting stability and structural integrity to the foundation.

2. Excellent Bonding and Adhesion

One of the standout advantages of epoxy grout is its ability to form a strong bond with both the machinery base and the existing foundation. Through its excellent bonding and adhesion properties, epoxy grout creates a reliable connection that effectively transfers loads, withstands dynamic forces, and dampens vibrations generated by machinery operations. This robust bond contributes to the overall stability and longevity of the machinery foundation.

3. Chemical and Moisture Resistance

Epoxy grout exhibits outstanding resistance to chemicals, oils, and moisture. This characteristic makes it highly suitable for machinery foundation repair, as it provides an added layer of protection against potential damage caused by chemical spills, leaks, or environmental factors. By resisting the effects of corrosive substances and moisture infiltration, epoxy grout helps maintain the integrity and durability of the foundation over time.

4. Reduced Shrinkage and Cracking

Compared to traditional grouts, epoxy grout demonstrates minimal shrinkage and cracking during the curing process. This unique property is advantageous for machinery foundation repair, as it minimises the risk of developing cracks within the grout. By preventing cracks from forming, epoxy grout ensures the stability of the machinery foundation, reduces the likelihood of further damage, and helps maintain a secure and reliable support system.

5. Vibration Damping

Epoxy grout possesses excellent vibrational damping properties, making it particularly beneficial for machinery foundation repair. Vibrations generated by machinery operations can have detrimental effects on the foundation’s stability and the machinery itself. The ability of epoxy grout to absorb and dissipate vibrations helps minimise their transmission to the foundation, thereby reducing the potential for structural damage and enhancing the overall performance and lifespan of the machinery.

6. Precision Alignment

An advantage of using epoxy grout in machinery foundation repair is its capability to achieve precise levelling and alignment. With its self-levelling properties and ability to flow into tight spaces, epoxy grout allows for accurate positioning of the machinery base. This precise alignment is essential for optimising machinery performance, minimising operational issues, and ensuring smooth and efficient operations.

7. Temperature and Weather Resistance

Epoxy grout exhibits excellent resistance to temperature fluctuations and adverse weather conditions. It remains stable and unaffected by extreme heat, cold, or varying environmental factors. This resistance ensures that the machinery foundation maintains its structural integrity and performance consistency, regardless of the surrounding temperature or weather conditions.

8. Non-Shrink Characteristics

Unlike traditional grouts that may experience shrinkage during the curing process, epoxy grout maintains its volume and shape without significant shrinkage. This non-shrink property is crucial for machinery foundation repair, as it eliminates the risk of gaps or voids in the grout. By providing a solid and consistent fill, epoxy grout ensures a stable and reliable foundation, minimising the potential for movement, settlement, or further damage.

9. Rapid Curing Time

Epoxy grout offers a relatively fast curing time, allowing for efficient machinery foundation repair. The quick curing process reduces downtime and minimises disruptions to machinery operations. This advantage is particularly valuable for industries and facilities where continuous machinery functionality is critical, enabling a swift return to normal operations and reducing any associated productivity losses.

10. Versatility and Adaptability

Epoxy grout is highly versatile and adaptable, making it suitable for various machinery foundation repair scenarios. It can be customised to meet specific project requirements, including adjustments to flowability, viscosity, and strength. This versatility ensures optimal performance and suitability for different machinery types, foundation conditions, and repair specifications, providing tailored solutions for each unique repair project.

Conclusion

Epoxy grout offers a range of benefits when it comes to grout restoration and repair of machinery foundations. Its exceptional strength, precise application, excellent bonding, chemical resistance, reduced shrinkage, and vibrational damping properties make it a reliable choice for maintaining stable and durable foundations.

By utilising epoxy grout in grout restoration and repair projects, industries can ensure the long-term performance, safety, and efficiency of their machinery operations.

Remember, when considering epoxy grout for machinery foundation repair, it is essential to consult with professionals experienced in epoxy grout applications to ensure proper installation and maximise the benefits it provides. Reach out to us at Alphatec Engineering now!
