Heavy machinery plays a vital role in various industries, from mining to oil and gas. However, frequent and severe use of these machines can lead to wear and tear of essential components, such as anchor bolts, which can cause significant damage and lead to costly repairs.

According to Industrial Safety and Hygiene News, “Anchor bolt failure is a major cause of serious accidents, and can be prevented through proper installation and regular maintenance.”

At Alphatec Engineering, we have seen firsthand the consequences of anchor bolt failure, and we have developed effective strategies to prevent and fix it.

Causes of Anchor Bolt Failure

Anchor bolts are critical elements in the support structure of heavy machinery. They provide a secure connection between the foundation and the machinery, which is essential for maintaining stability and preventing vibrations. However, anchor bolts can fail for several reasons, including:

• Incorrect installation: Anchor bolts must be installed according to specific procedures and standards to ensure their proper functioning. Failure to follow these procedures can lead to weak connections and inadequate support. It can also include using incorrect materials, not aligning the equipment correctly
• Corrosion: Heavy machinery is often exposed to harsh environments, which can cause corrosion in the anchor bolts. Corrosion weakens the bolts and can cause them to break under stress


  Corroded Anchor Bolt

• Overloading: Heavy machinery can put significant stress on anchor bolts, which can cause them to fail if they are not strong enough to withstand the load
• Additionally, insufficient tightening of anchor bolts or neglecting to re-torque them after a certain period of time can also cause them to fail

How To Prevent Anchor Bolt Failure

Preventing anchor bolt failure requires a combination of proper installation, maintenance, and monitoring. Here are some tips to help prevent anchor bolt failure:

• Use high-quality materials: Anchor bolts must be made from high-quality materials that can withstand the stress and corrosion of heavy machinery. At Alphatec Engineering, we use Grade 8.8 fully threaded rod as replacement anchor bolt material, which is strong and durable
• Follow installation procedures: Anchor bolts must be installed according to specific procedures and standards, such as API RP 686. This ensures that the bolts are properly aligned, torqued, and grouted, which provides a secure and stable connection


  image source: api.org

• Conduct regular inspections: Regular inspections of the anchor bolts can help detect any signs of corrosion, wear, or damage. This allows for early detection and repair, which can prevent more severe issues down the line
• Use protective coatings: Applying protective coatings, such as epoxy coatings or galvanizing, can help prevent corrosion and extend the lifespan of anchor bolts
• Ensuring that the machinery is used within its design capacity and avoiding overloading can significantly reduce the stress on anchor bolts and prevent their failure.

Frequently Asked Questions

What causes anchor bolt failure in industrial machinery?

Anchor bolt failure is most commonly caused by foundation deterioration, improper installation, inadequate grouting, corrosion, fatigue from dynamic loads, or over-tightening during installation. In many cases the root cause is a foundation problem rather than a fastener problem — the bolt fails because the foundation beneath it has degraded.

What are the signs of anchor bolt failure?

Common signs include increased machinery vibration, audible looseness, visible cracking in the grout or concrete around the bolt, misalignment of the equipment, and physical movement of the base plate under operating loads. Any of these symptoms warrants immediate inspection.

Can a failed anchor bolt be repaired without replacing the foundation?

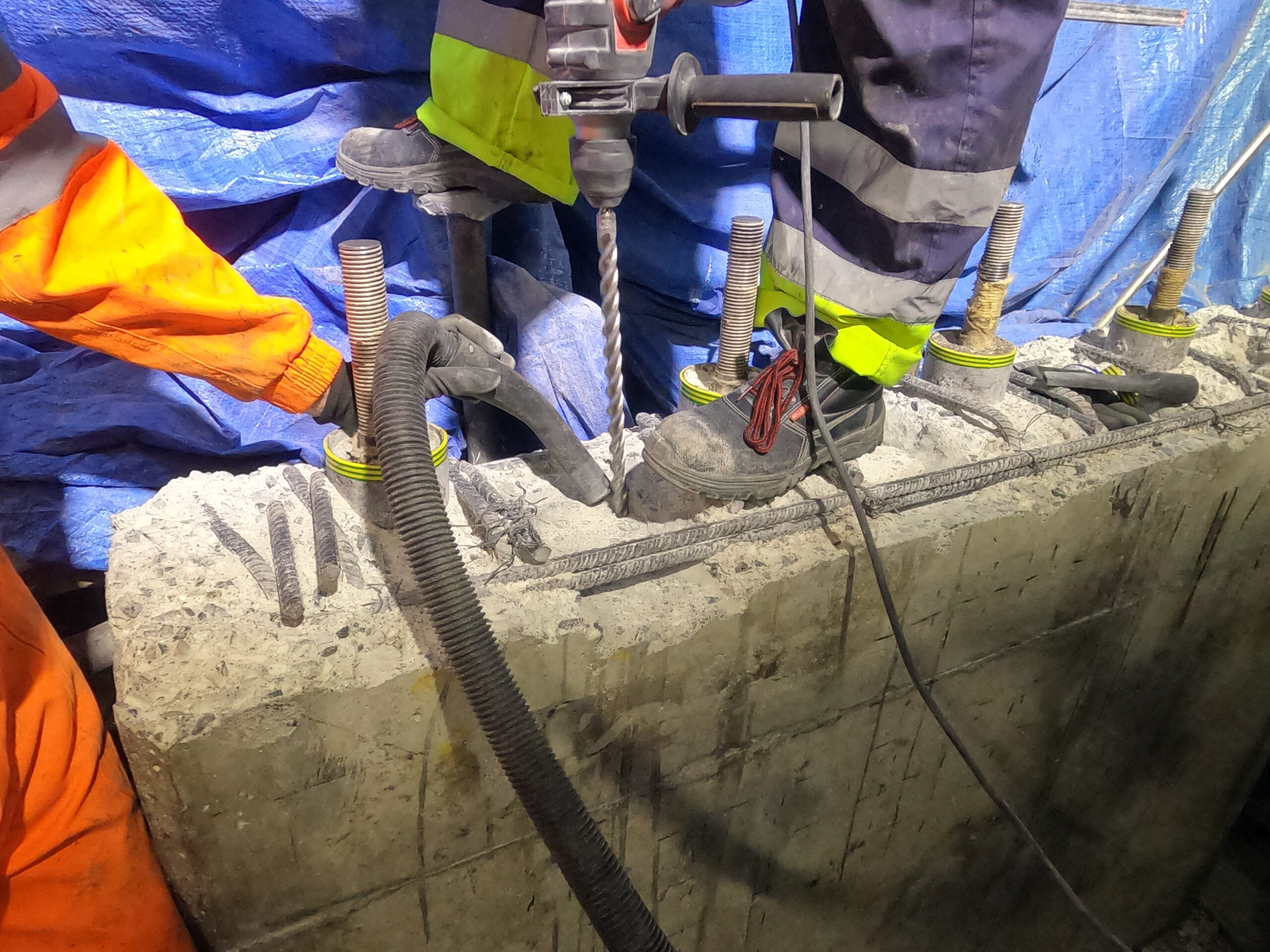

In many cases yes. If the foundation concrete is structurally sound, individual anchor bolts can be replaced using chemical anchoring systems or mechanical re-anchoring methods. Where the surrounding grout has also failed, regrouting with epoxy grout is carried out as part of the same repair.

What is the correct procedure for anchor bolt replacement?

The equipment is isolated and the base plate is raised. The failed bolt is removed, the hole is cleaned and inspected, and a new bolt is installed using the appropriate anchoring system. The base plate is then realigned and the foundation regrouted with epoxy grout before the bolt is tensioned to the correct specification.

How does foundation grouting affect anchor bolt performance?

Properly installed epoxy grout supports the anchor bolt across its full embedded length, distributes load evenly, and prevents the micro-movement that causes fatigue failure over time. A poorly grouted or voided foundation concentrates stress at the bolt, significantly accelerating failure.

How often should anchor bolts be inspected on rotating equipment?

Anchor bolt inspection should be included in routine planned maintenance schedules. The frequency depends on equipment type, operating speed, and load conditions. High-vibration equipment such as reciprocating compressors typically requires more frequent inspection than low-vibration rotating machinery.

Does Alphatec Engineering provide anchor bolt repair and replacement services?

Yes. Alphatec Engineering provides anchor bolt inspection, repair, and replacement services for heavy industrial rotating equipment globally. Services include condition assessment, bolt extraction, chemical anchoring, foundation regrouting, and precision realignment across 50+ countries.

Conclusion

Anchor bolt failure in heavy machinery can lead to significant damage, downtime, and costly repairs. By following proper installation procedures, selecting high-quality materials, and regularly checking the tightness of anchor bolts, it is possible to prevent such failures.

At Alphatec Engineering, we understand the importance of anchor bolts and provide a range of services to help prevent anchor bolt failure. From installation to maintenance to repair, our experienced technicians use high-quality materials and follow industry best practices to ensure the safe and reliable operation of heavy machinery.

Don’t let anchor bolt failure compromise the safety and productivity of your equipment. Contact Alphatec Engineering today to learn more about our services and how we can help prevent anchor bolt failure in your machinery.  At Alphatec Engineering we can help you – reach out here!
