In many industrial process plants, rotating machines like compressors, pumps, blowers, fans, presses, generators, mills, and mixers form the backbone of daily operations. While maintenance teams focus on keeping these machines running, it’s very common to overlook the machinery foundations they sit on.
A properly designed, well-maintained foundation is often the difference between smooth operations and regular downtime. Foundation problems manifest in vibration, alignment issues, and equipment failures. By reinforcing and maintaining the support system, you can minimise downtime and reduce operating costs.
In this article, we’ll look at proven strategies for building and preserving robust machinery foundations, showing how a focus on integrity can boost efficiency and extend the service life of essential equipment.
Dynamic Loads and Vibration Isolation
Dynamic loads and vibrations from industrial machinery can weaken foundations over time. This damages both the machine and surrounding structures. While catastrophic machine failures have decreased thanks to better diagnostics, there’s still a gap between diagnosing vibration issues and understanding how best to prevent or repair the underlying foundation problems.
Vibration isolation is one key strategy. Using materials with elastic behavior and damping properties can minimize the transfer of vibrations to the foundation. However, the best results come from installing the foundation correctly from the start. If issues do develop, an expert foundation repair can often restore stability and maintain production.
Concrete Foundations and Equipment Anchorage
A reinforced concrete foundation is one of the most common solutions for industrial machinery. This design:
- Distributes the machine’s weight evenly
- Resists vibrations and heavy loads
- Provides a stable, long-lasting base
Proper anchoring of equipment to the concrete foundation is also crucial. Using the right type of bolts or other fastening methods prevents misalignment and movement.
Grouting (filling spaces between the machinery base and foundation) further enhances stability. Selecting the right grout material—such as epoxy grout—helps minimize vibrations and drastically reduces the risk of misalignment. (Learn more in our updated post on Epoxy Grout vs. Cement Grout for a deeper comparison of materials.)
Alphatec Epoxy Grout
Seismic Considerations and Structural Design
In regions prone to seismic activity, a foundation must be engineered to withstand these forces. The structural design should incorporate:
- Site conditions analysis (soil type, soil-structure interaction)
- Seismic activity assessment (frequency and magnitude of possible events)
- Reinforcement requirements (to prevent cracks or shifting)
Approaching the foundation as a complete engineering problem—one that factors in dynamic, seismic, and operational loads—ensures a safe and reliable setup.
Practical Maintenance Tips for Foundations
Even the best-designed foundation benefits from routine inspections and maintenance:
- Regular Visual Checks: Look for cracks, spalling, or signs of grout degradation.
- Alignment Testing: Monitor alignment to catch small shifts before they result in major downtime.
- Vibration Monitoring: Track vibration patterns and address anomalies quickly.
- Proper Regrouting: If grout is cracked, loose, or degraded, regrout promptly to restore stability.
- Bolt Inspection: Check for loosening or corrosion of anchor bolts.
By staying proactive, you’ll minimise major repairs and keep machinery operating at optimal performance.

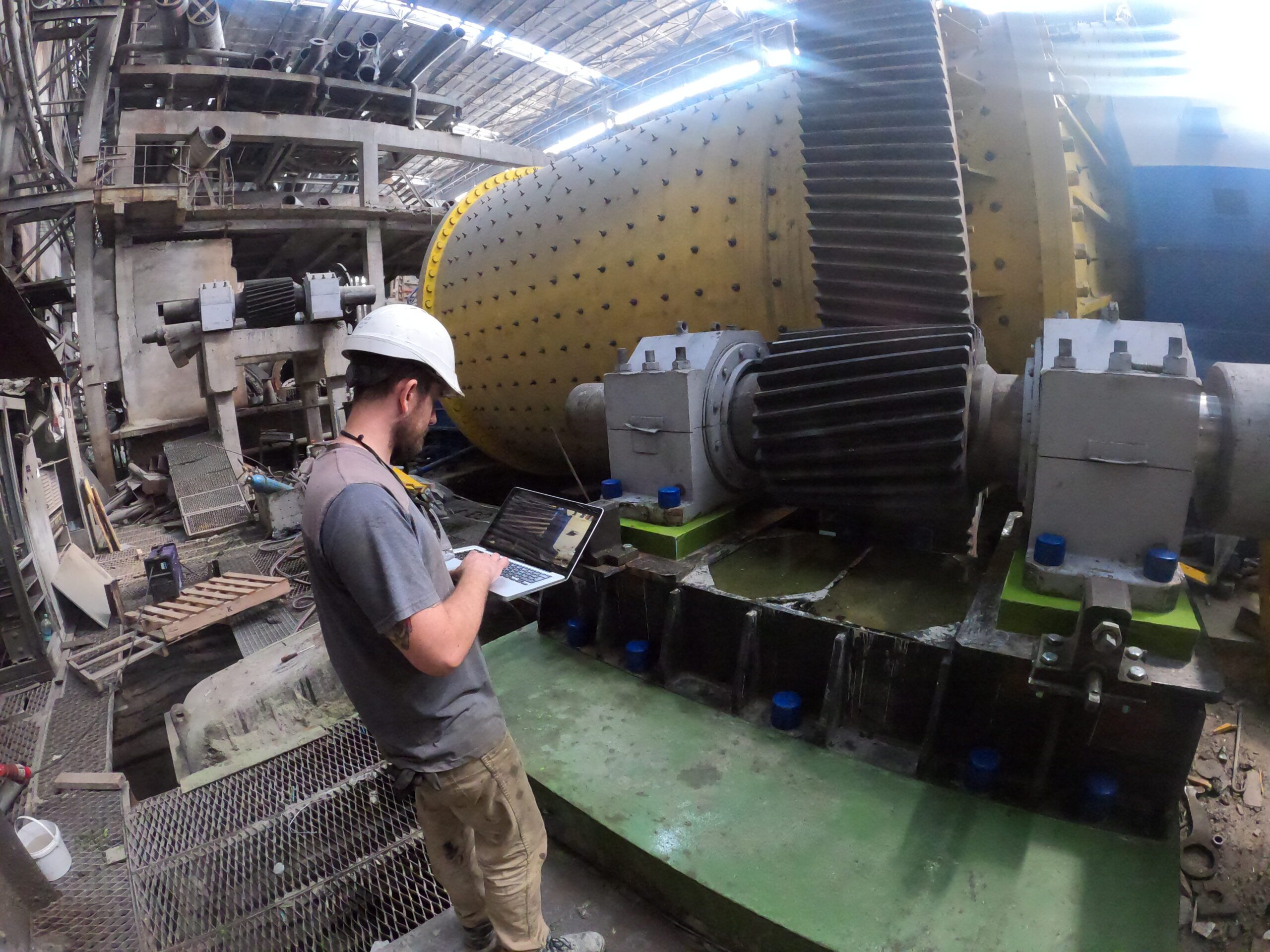

Real-World Example: Alphatec Engineering’s Expertise
A machines foundations, irrespective of the size and type of machine, should be regarded as engineering problems and their designs should be based on sound engineering practices. Over the last four decades, Alphatec Engineering has grouted and repaired machinery foundations all over the world in a variety of industrial plants. In nearly every project, alignment was out of tolerance and the original grout was severely degraded. Our experienced team applies various techniques to prevent the problems and maximise output, minimise vibration, and extend the life of critical machinery foundations. To see various successful projects, check our success cases page here.
Conclusion
A machines foundations, irrespective of the size and type of machine, should be regarded as engineering problems and their designs should be based on sound engineering practices.
A machine’s foundation plays a vital role in ensuring smooth operation, reducing power consumption, and preventing costly failures. By focusing on foundation design, proper installation, and ongoing maintenance, you can:
- Minimise vibrations
- Prevent misalignment
- Decrease power consumption
- Increase output
- Reduce the risk of equipment failure
Whether installing new machinery or upgrading existing equipment, prioritising the foundation is your best bet for maximizing performance.
Need help with an underperforming foundation? Have questions about anchor bolts or foundation regrouting? Contact Alphatec Engineering today to learn how our expert team can ensure the stability, efficiency, and longevity of your industrial machinery.
